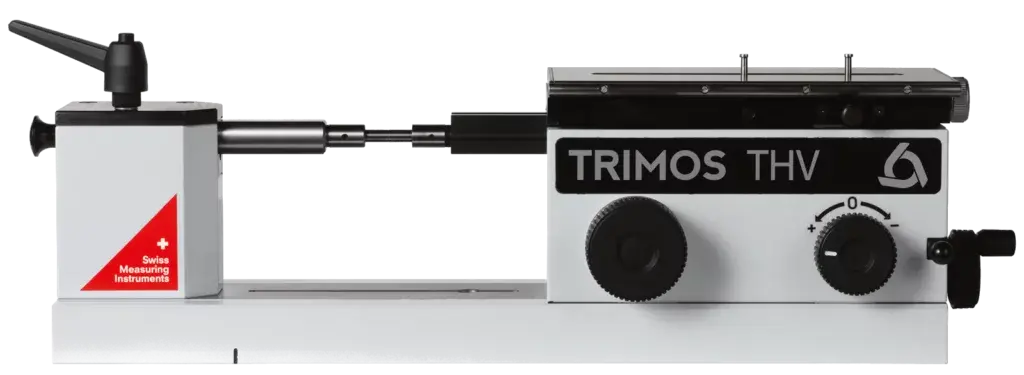

The horizontal THV instrument is designed for the calibration and certification of small size gauging equipment.

It enables easy and precise control of buffer gauges, ring gauges, threaded plug gauges, test and dial gauges, as well as the measurement of high precision production parts.

The integrated opto-electronic measuring system guarantees high accuracy. A separate imaging unit or a PC with Trimos WinDHI software can be used to view the measurement results.

THV devices can also be delivered without a measuring system. Then either an electronic one or an electronic one as the measuring system: Comparator Hours will be used.

Due to its small size, the THV can be easily moved. For this reason, it is frequently used as a mobile calibration station.

Workshop space ideal for use in clean room and environment
Device meets all requirements EN ISO 9000
Very simple manipulation
Wide range of accessories
Internal and external control measurements using a single measurement element
According to the application; The device can be used horizontally, positioned or tilted up to 900 using an additional stand.

Display unit Heidenhain Nd1100
Linear measuring system, min./max. value retention.
Inversion of the measurement direction sign (+/-)
Zero adjustment of display and preset input
Parameter settings and classify
Configuration of the display using external communication
Rs232 data output
PC with TIROMOS WinDHI
The TIROMOS WinDHI software allows performing all necessary measuring functions and connecting to a display control and management system.
* Reverse the measurement direction sign (+/-)
* DDE server (for excel, word etc.)
* Graphical help for measurement functions
* Data transfer with foot pedal
* All length measurement values and min./max. value retention
* Measurement with 9 references
* Management systems compatible with measuring equipment
