No compromise on accuracy.

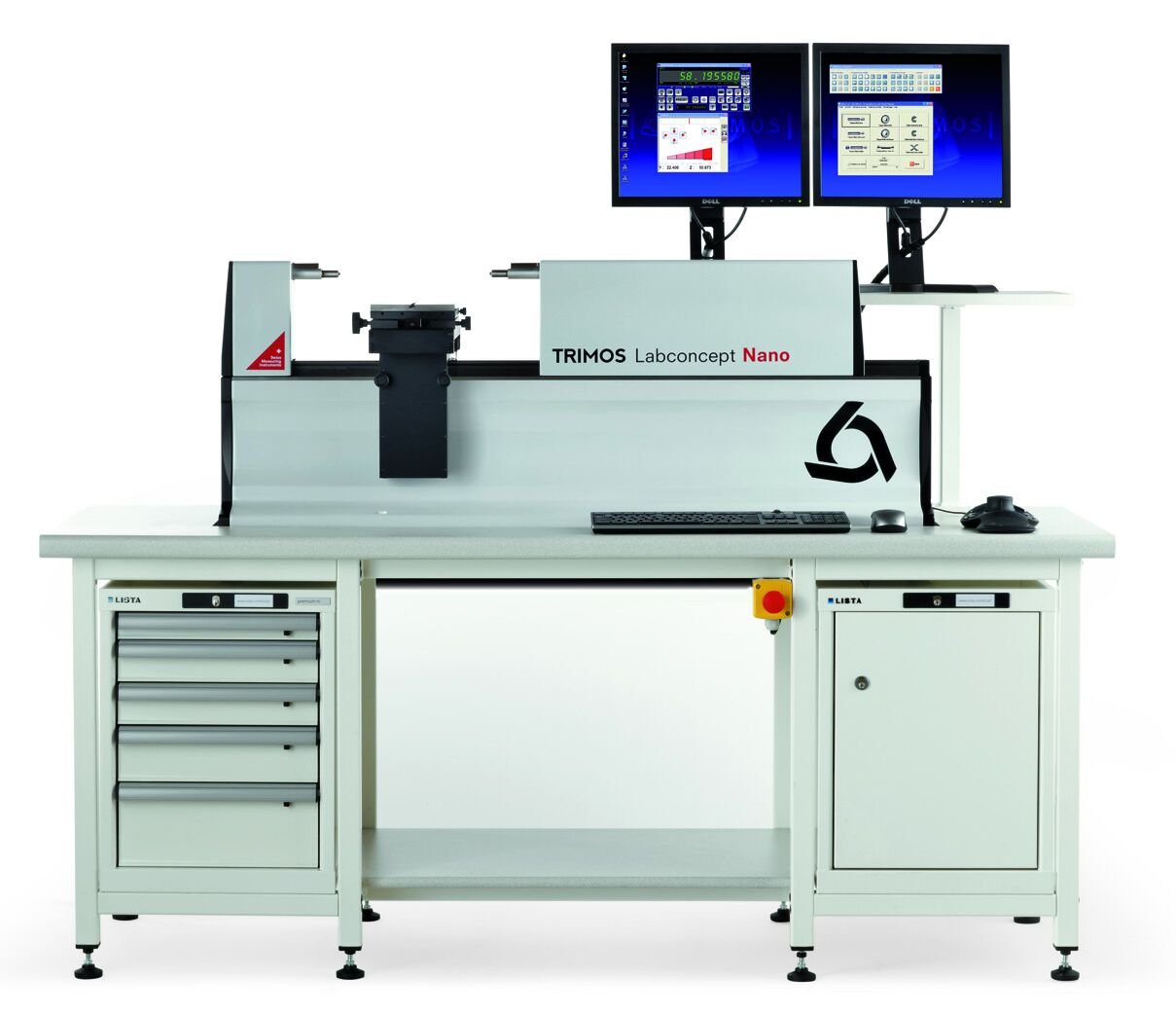

Labconcept Nano is a new reference in dimensional metrology. It integrates 40 years of knowledge and continuous improvement. It is a valuable tool for all measurement tasks that require extremely high accuracy.
Labconcept Nano's uncompromising design provides an ideal and performance platform for the control and calibration of any indicator and measuring instrument. Control of internal and external dimensions will be done as a fully automatic procedure with the triple motor XYZ axis and the legendary ease of use of Trimos WinDHI software.
The Labconcept Nano is designed and manufactured entirely in Switzerland to the highest quality standards.
Robustness, reliability and long life are our traditional values.
A new technological dimension...
Labconcept Nano combines tradition, experience and strong technological leadership. It integrates the latest measurement and motorization technologies and can be considered the first "full digital" calibration device. A normal PC controls all electronic components. This low power solution avoids heating and keeps energy, maintenance and repair costs at a reasonable level. Linear bearings used in all guides have proven their superiority over all other technologies in terms of precision, wear, rigidity, temperature stability, reliability, dust protection and maintenance. It provides exceptional repeatability and precision over time.
Unmatched high level of accuracy
Exceptional repeatability
Motorized measuring carriage, X-axis speed selection with software
Motorized universal measuring table, Z-axis with CNC Y integrated measuring system
Force measurement (0-12N) and Ve measuring jaw locking feature implemented by software
Integrated temperature compensation system
All models with absolute measuring range open: 350 mm
Application ranges of 350, 600 and 1100 mm
Part measurement up to 60 kg
2 screens in a standard package
CNC control diameter and gear control
