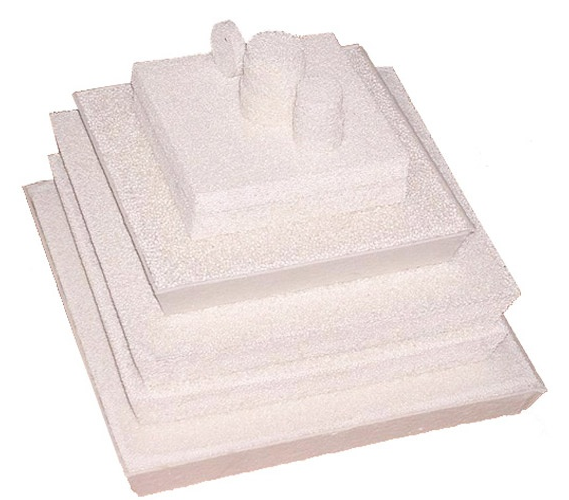

FCF-3 Ceramic Foam Filters For Aluminum Castings
Features:
FCF-3 ceramic foam filters increase the strength and quality of the casting by keeping the non-metallic inclusions in the molten metal. As a result of its use, less scrap, increased strength, increased mechanical properties, better surface and machinability are obtained.
Technicial Specifications
| Medicine | Compression Strength | Intensity | Pore | Operating temperature |
| FCF-3 | 1,2 | 0.36-0.45 | 80-92 | 1150 |
| Dimensions (inch) | Flow (kg/min) | Max Filtered Weight (tonnes) |
| 9x9x2 | 25-75 | 6 |
| 12x12x2 | 90-170 | 14 |
| 15x15x2 | 130-280 | 23 |
| 17x17x2 | 180-370 | 35 |
| 20x20x2 | 370-520 | 44 |
| 23x23x2 | 360-700 | 58 |
FCF4 Ceramic Foam Filter Box
FCF-4 Ceramic Foam filter boxes increase the strength and quality of the casting by keeping the non-metallic inclusions in the molten metal. As a result of its use, less scrap, increased strength, increased mechanical properties, better surface and machinability are obtained.
| Medicine | Compression Strength | Intensity | Pore |
| FCF-4 | 0.7 | 0.40 | 80-90 |
| Dimensions (mm/inch) | Flow (kg/min) | Typical Weight (t) |
| 178x178x50 (7') | 25-50 | 4.2 |
| 254*254*50 (10') | 45-100 | 7.0 |
| 305x305x50 (12') | 90-170 | 14.0 |
| 381x381x50 (15') | 130-280 | 23.0 |
| 432x432x50 (17') | 180-370 | 35.0 |
| 508x508x50 (20') | 270-520 | 44.0 |
| 584x584x50 (23') | 360-700 | 58.0 |
PPI Selection
- Casting: 10-25 ppi
- Semi-continuous casting: 30-60 ppi
- High quality Aluminum Ingot: 50-60 ppi
- Continuous Casting Direct Rolling : 50-60 ppi
